Laser Cleaning Auxiliary Device
by SFX Laser
SKU JF-500
Original price
$1,329.00
-
Original price
$1,329.00
Original price
$1,329.00
$1,329.00
-
$1,329.00
Current price
$1,329.00

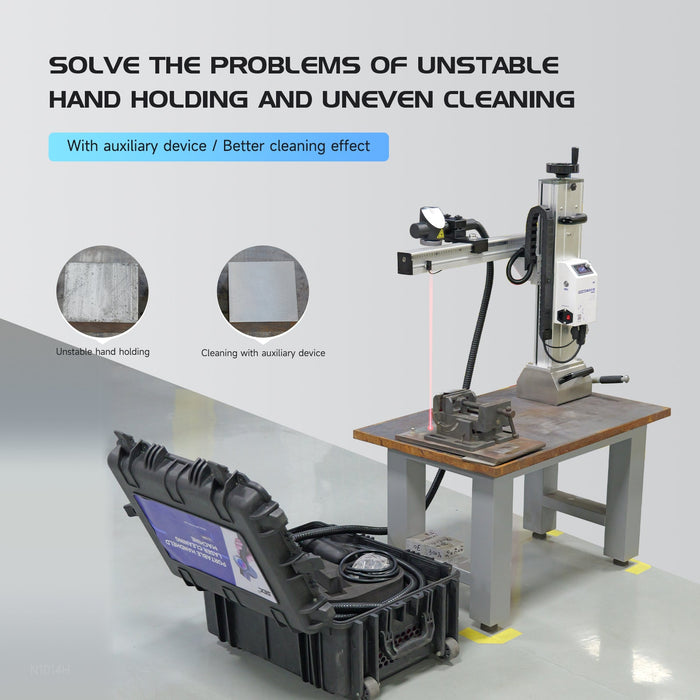

The JF-500 is a specialized auxiliary device designed to enhance the performance of SFX 200W Trolleycase Pulse Laser Cleaning Machines. It ensures stable operation, even cleaning, and improved efficiency, addressing common challenges like hand instability and uneven cleaning results.
The JF-500 is a specialized auxiliary device designed to enhance the performance of SFX 200W Trolleycase Pulse Laser Cleaning Machines. It ensures stable operation, even cleaning, and improved efficiency, addressing common challenges like hand instability and uneven cleaning results.
Description
Features
-

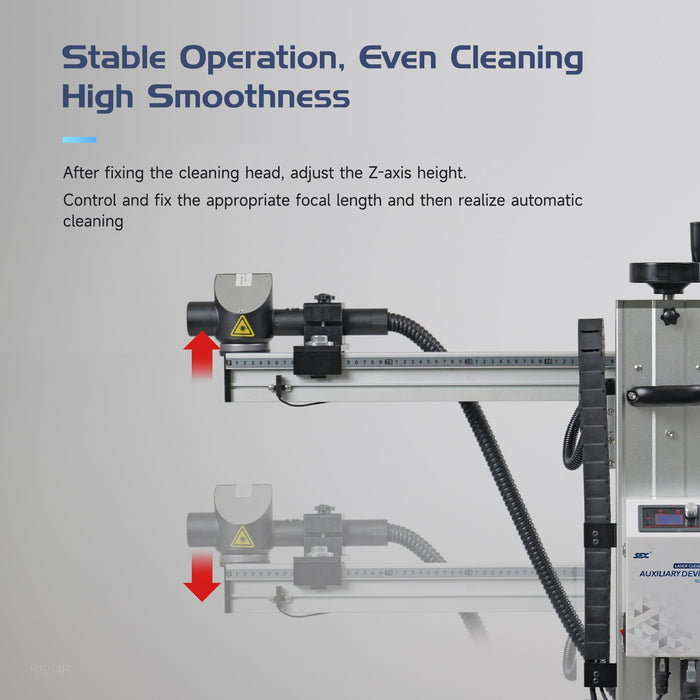

Stable and Precise Cleaning: Maintains a fixed focal length for consistent cleaning with high smoothness and uniform results.
-

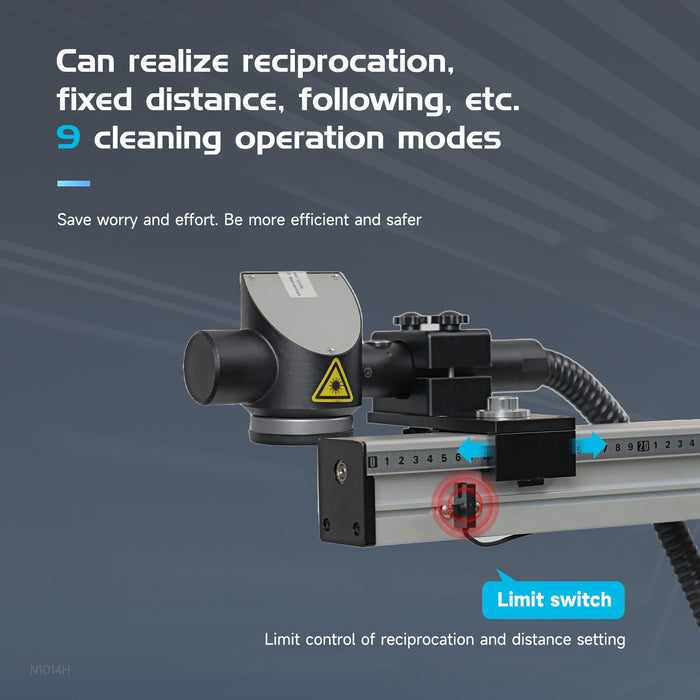

9 Cleaning Modes: Includes reciprocation, fixed distance, and following modes, making cleaning tasks more efficient and safe.
-

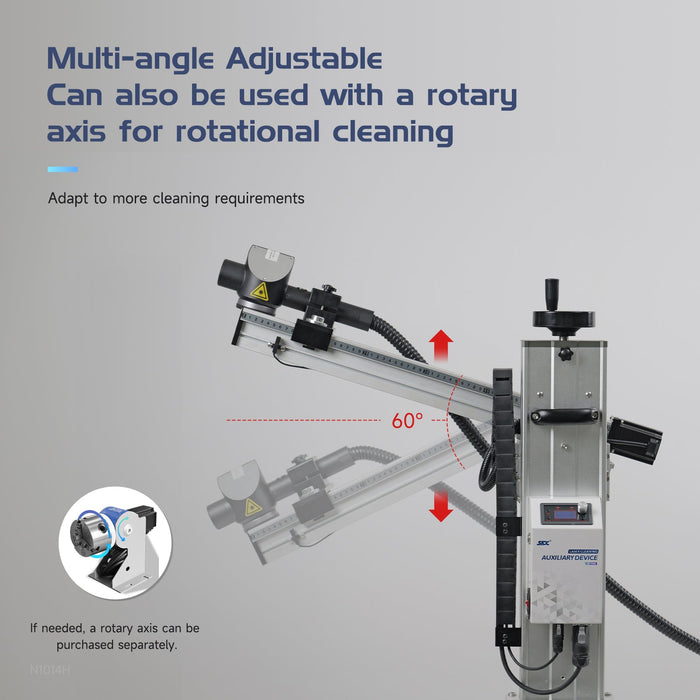

Multi-Angle Adjustability: Supports varied cleaning requirements and can be paired with a rotary axis for rotational cleaning.
-
Magnetic Base: Easily attaches to large, immovable workpieces, making it ideal for industrial applications.
-
Easy Operation: Features two-way speed adjustment, one-button start/stop, and forward/reverse controls for user convenience.
- Compact and Lightweight: Weighs only 46 lbs (21kg) and is easy to integrate into existing setups.
Applications
- Metal surface cleaning, paint removal, and rust removal on large, stationary workpieces.
- Ideal for use in aerospace, automotive, and manufacturing industries where consistency and efficiency are critical.

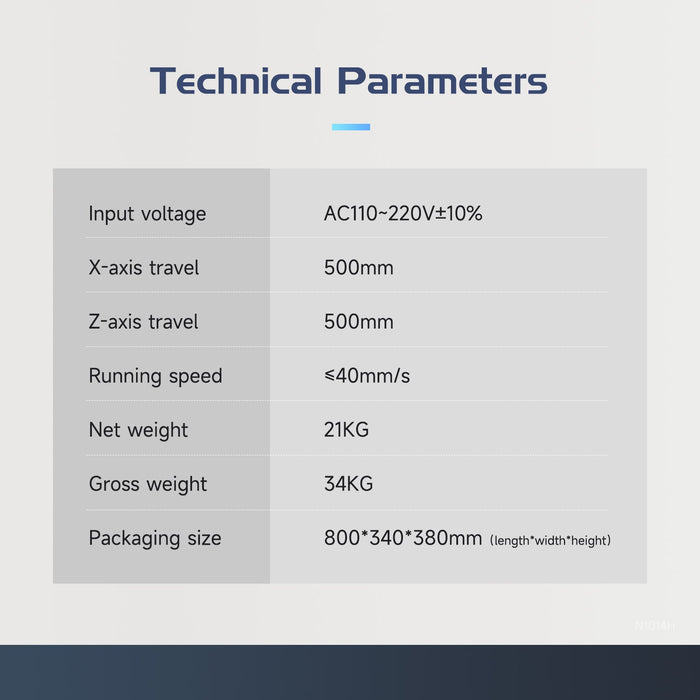

Specifications
| Input Voltage | AC110V-220V±10% |
| X-axis Travel | 500mm |
| Z-axis Travel | 500mm |
| Running Speed | ≤40mm/s |
| Net Weight | 21kg |
| Gross Weight | 34kg |
| Packaging Size | 800*340*380mm |
