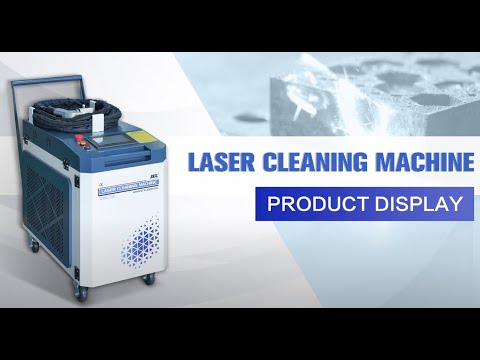

SFX 1500W/2000W/3000W Continuous Handheld Fiber Laser Cleaning Machine for Rust Removal
- Ideal for removing rust, paint, oil and coatings without damaging the substrate.
- Upgraded cleaning gun head for continuous operation without lens burn.
- 550-600mm focal length, 160±10mm cleaning width.
- US stock: 5-10 days free air shipping to your door.

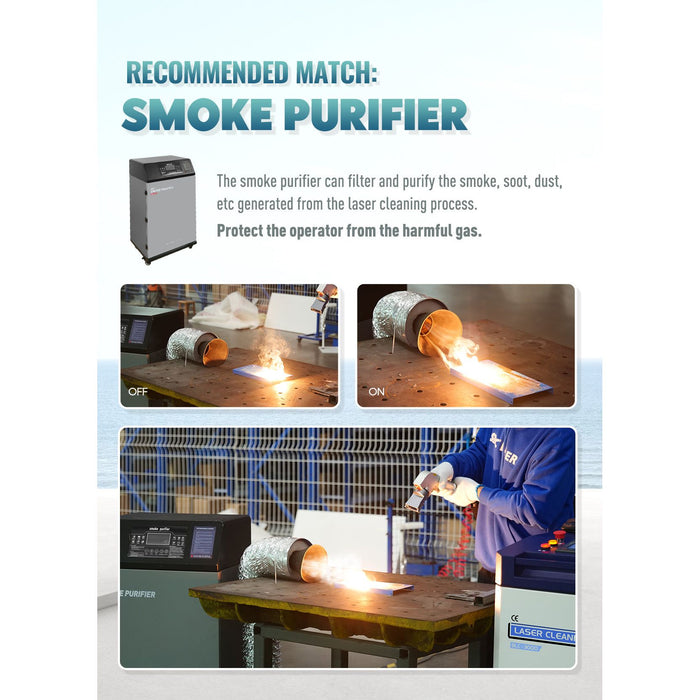

- Recommended for use with the SFX-400L Fume Purifier (add-on below).
- Ideal for removing rust, paint, oil and coatings without damaging the substrate.
- Upgraded cleaning gun head for continuous operation without lens burn.
- 550-600mm focal length, 160±10mm cleaning width.
- US stock: 5-10 days free air shipping to your door.
- Recommended for use with the SFX-400L Fume Purifier (add-on below).
Features
Applications

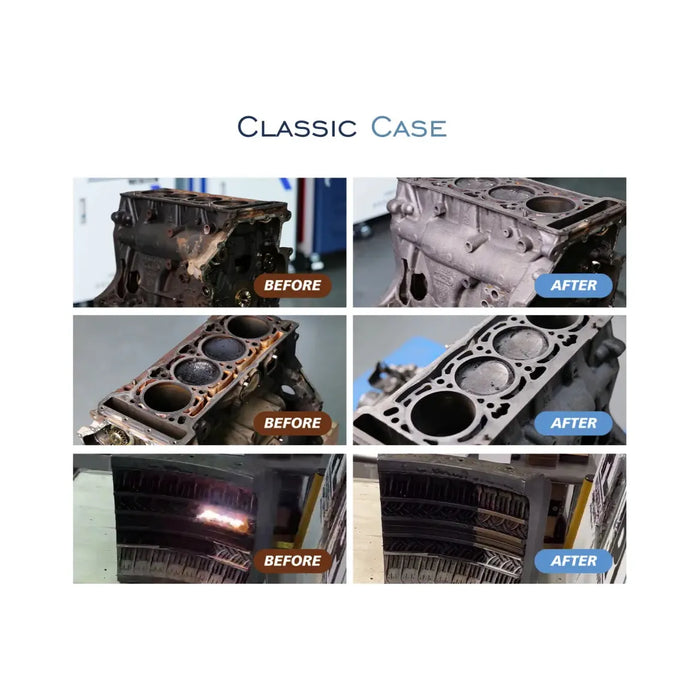

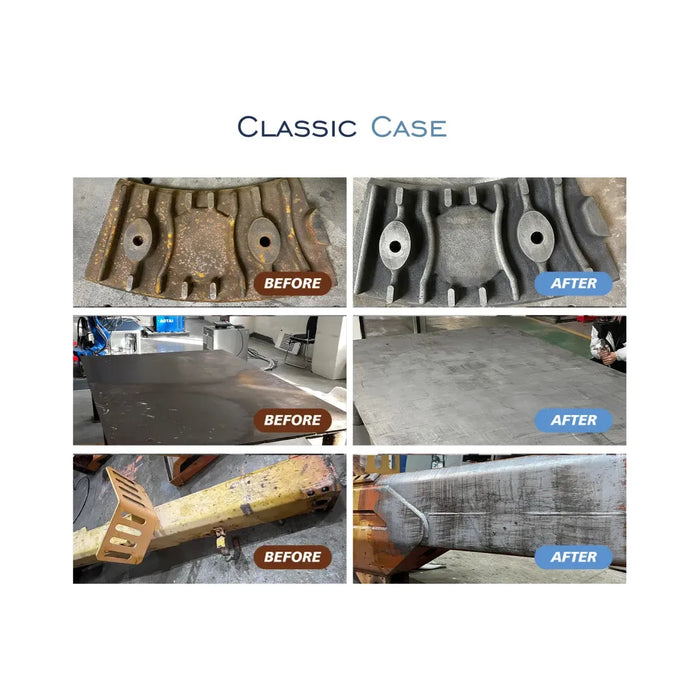

- Automotive/Truck Rust Paint Restoration, Engine cylinder head and gearbox exterior Cleaning, Steel Construction Rust Removal, Graffiti Removal, Metal Paint Stripping,
- Metal Parts Cleaning, Derusting Parts, Gear Decontamination, Casting Paint Removal, Weld Seam Cleaning, Rust and Corrosion Removal, etc.
- NOT ideal for mill scale of hot-rolled steel, light-colored paint and high-temperature-treated paint or coating, glue, resin, mold spots on damp wood cleaning. If you are looking for a laser cleaning machine for wood, please consider the SFX pulsed laser cleaner.
Please review our selection guide for more information.
Features

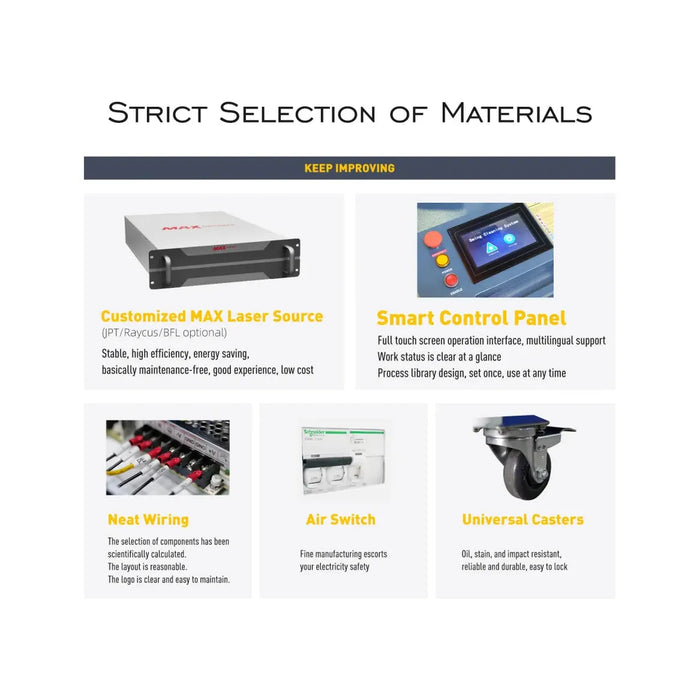

High-quality components and Rigorous Tests
MAX brand laser source, Hanli chiller. Thickened sheet metal structure for durability and anti-deformation. Rigorous testing as continuous working test, high contamination test, etc.

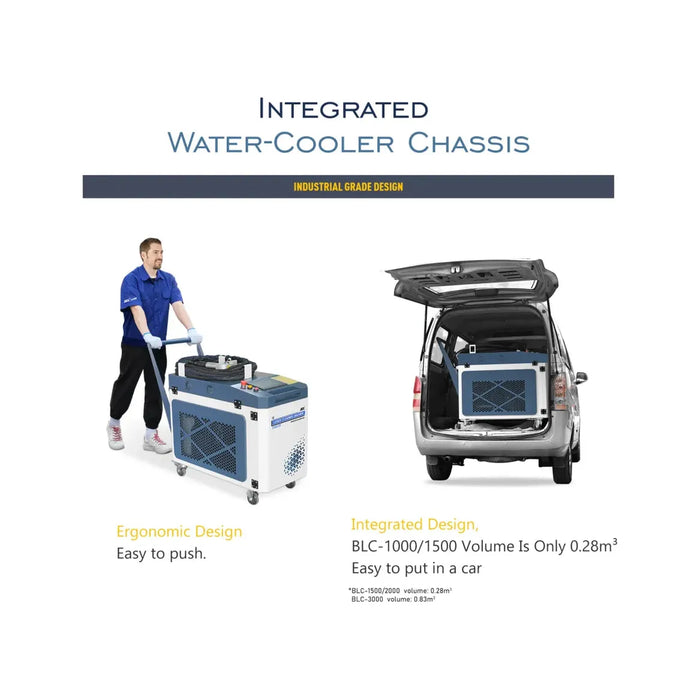

Compact and Portable

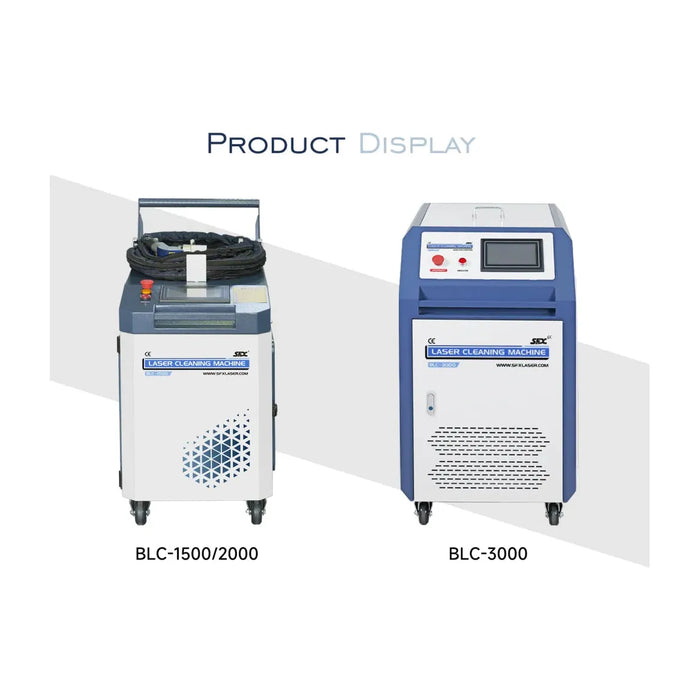

Integrated water-cooler chassis with small volume (BLC-1500: 0.23m³, BLC-2000: 0.28m³, BLC-3000: 0.83m³) makes it easy to transport and use for outdoor cleaning.
Continuous Operation not Buring Lens & Non-contact 360° Cleaning
SFX Laser R&D upgraded cleaning gun head. Continuous operation not burning lens, save cost. Not limit by space and location, flexible and easy to remove rust on large irregular workpieces and hard to reach areas.
550-600mm Focal Length, 160±10mm cleaning width. Red light assisted positioning for precise control. SFX laser rust removal machine is lightweight with universal casters and ergonomic design for easy pushing.
Safe and Easy Operation
English user manual. A training and operation video will be sent together with the machine. Online guidance is also offered. Double-clicking the switch is required to start cleaning in order to protect the operator by avoiding accidental touch.
No Damage to Substrate & High Efficiency
Laser cleaning is faster, environmentally friendly, and does not damage the substrate compared to sandblasting and grinding.
3000W Laser Cleaning Machine Efficiency is about 3.8 times of 1500W Laser Cleaner, 2.7 times of 2000W Laser Cleaning machine.
Technical Specifications
| Laser Source Power | 1500W/2000W/3000W |
| Scanning Width | 160±10mm |
| Laser Type | Continuous |
| Total Power | 8KW/10KW/13KW |
| Current | 3000W - L1 22A, L2 12A, L3 12A, N 12A; 2000W - 45A; 1500W - 36A |
| Cable Length | 10m (1500W/2000W,15m/20m can be customized); 20m(3000W) |
| Laser Wavelength | 1080±10nm |
| Voltage | 220V 1-phase(1500W/2000W); 380V 3-phase(3000W) |
| Cooling Method | Water cooling
(Medium; Deionized Water, Distilled Water or Purified Water) |
| Package Dimensions | 1120*565*1050mm/1430*720*1220mm |
| Maximum Modulation Frequency | 20KHz |
| Water Tank Capacity | 16L (14-15L of Water to be Added) |
| Gross Weight | 145/169/285kg |
| Current | 3000W - L1 22A, L2 12A, L3 12A, N 12A; 2000W - 45A; 1500W - 36A |
